Products of swim-eq

Accessories / IF Directionnal Ball Inlets

produit swim-eq: IF Directionnal Ball Inlets
# IFC-2

Description:

They are pressure-molded from durable SBS thermoplastic resin and require no electrical bonding. Besides having no internal obstructions to cause plugging, they enable the full return stream to be deflected in anydirection within 25 deg. of the central position. The ball can easily be replaced by a strandard 1 1/2 in. pipe plug for the purposes of testing pipelines and winterizing. All threads have generous reliefs to prevent crossed threads during installation.

For concrete pool

The directional ball inlet fitting shall be suitable for concrete pool construction. All parts shall be pressuremolded pf ABS thermoplastic resin. The body shall be provided with a ''no-leak'' grouting flange. A cover shall be provided to protect the fitting during construction of the pool.

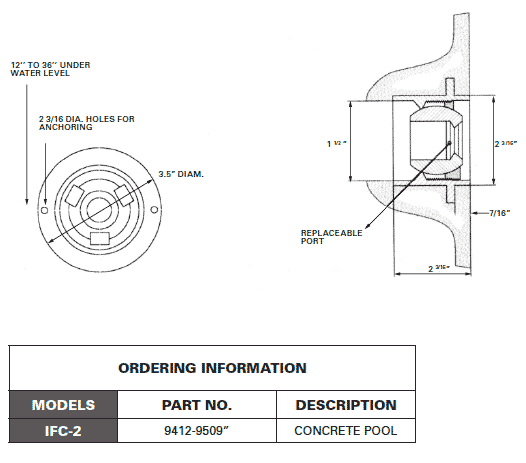

Technical details:

Click on image to enlarge.
inlets
