Products of swim-eq

Accessories / Ladder with cross brace

produit swim-eq: Ladder with cross brace
# 1615

Description:

Ladder rails and cross brace shall be formed of 1.90 O.D. x .065 wall, Type 304 polished stainless steel tubing. The cross brace shall be Heli-arc welded to the front and rear risers of each rail. The ladder shall be assembled with (2) (3) (4) formed 18 ga. 3'' wide polished stainless steel treads spaced on 11'' centers secured by 5/16-18 cradle head stainless steel bolts with nuts.

Technical details:

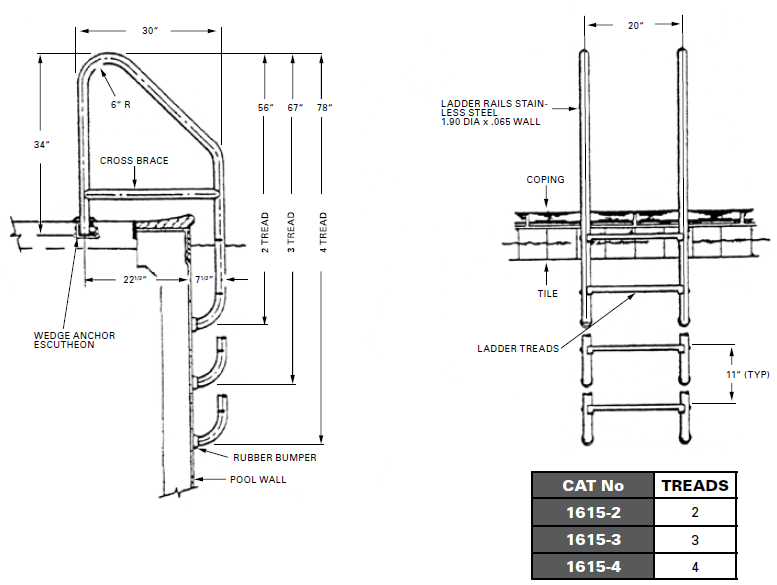

Click on image for bigger size.
ladder with cross brace
Add to cart
