# CRR - 36F
Description:
- A space saving rugged Canadian design, with flow rates to suit a wide range of filtrate requirements.
- Balanced internal distribution and loading through non-corrosive synthetic distributor lenses and underdrain laterals.
- Corrosion
free P.V.C. facepiping with butterfly valves will assure ultimate
simplicity of operation and the choice of fiberglass or S.S. tank
provides a totally corrosionless, ever lasting assembly.
- The compact design will allow for easy access in retrofit installations and stacking in normal ceiling height locations.
- Dual
assembly will maintain 50% of design flow during backwash thus
providing a continuous supply of filtered water at all times.
- Fiberglass assembly is suitable for seawater filtration.
- Custom designs are available with flow variations, for finer particle removal.

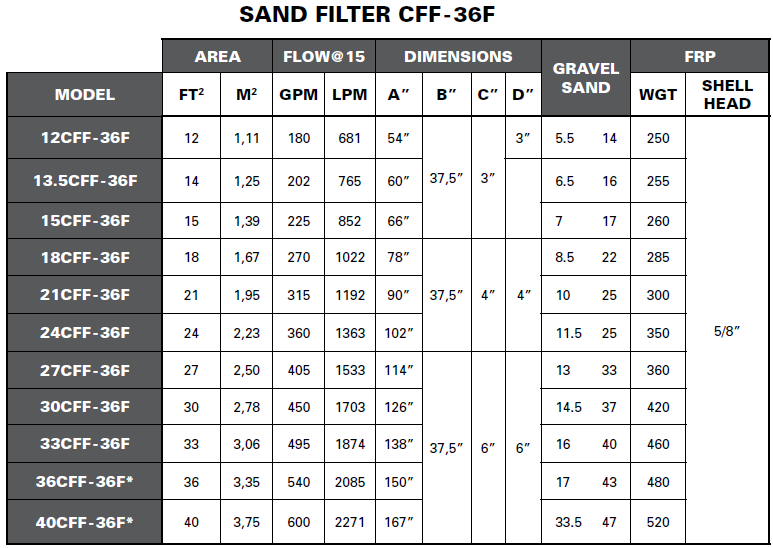

Technical details: Click on image to enlarge.
|
