Products of swim-eq

Filters / Dual tank

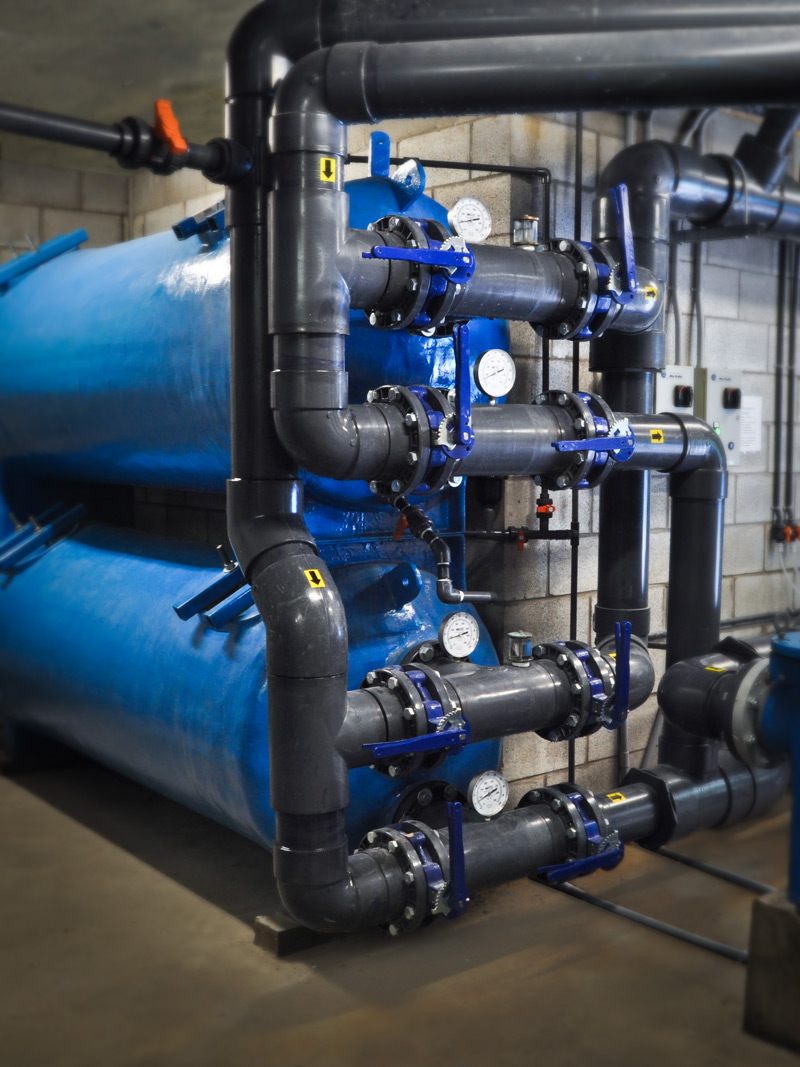

produit swim-eq: Dual tank
# CFF-236

Description:

  • A space saving rugged Canadian design, with flow rates to suit a wide range of filtrate requirements.
  • Balanced internal distribution and loading through non-corrosive synthetic distributor lenses and underdrain laterals.
  • Corrosion free P.V.C. facepiping with butterfly valves will assure ultimate simplicity of operation and the choice of fiberglass or S.S. tank provides a totally corrosionless, ever lasting assembly.
  • The compact design will allow for easy access in retrofit installations and stacking in normal ceiling height locations.
  • Dual assembly will maintain 50% of design flow during backwash thus providing a continuous supply of filtered water at all times.
  • Fiberglass assembly is suitable for seawater filtration.
  • Custom designs are available with flow variations, for finer particle removal.

Technical details:

Click on image to enlarge.

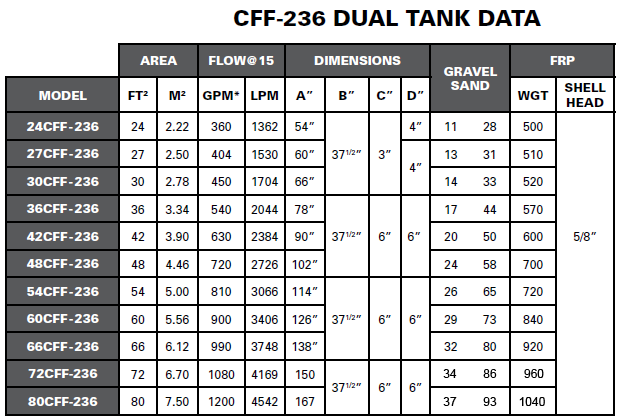

CFF-236 dual tank data
Add to cart
